Description
Hayward Cartridge Filter
Inground Filter
Overview

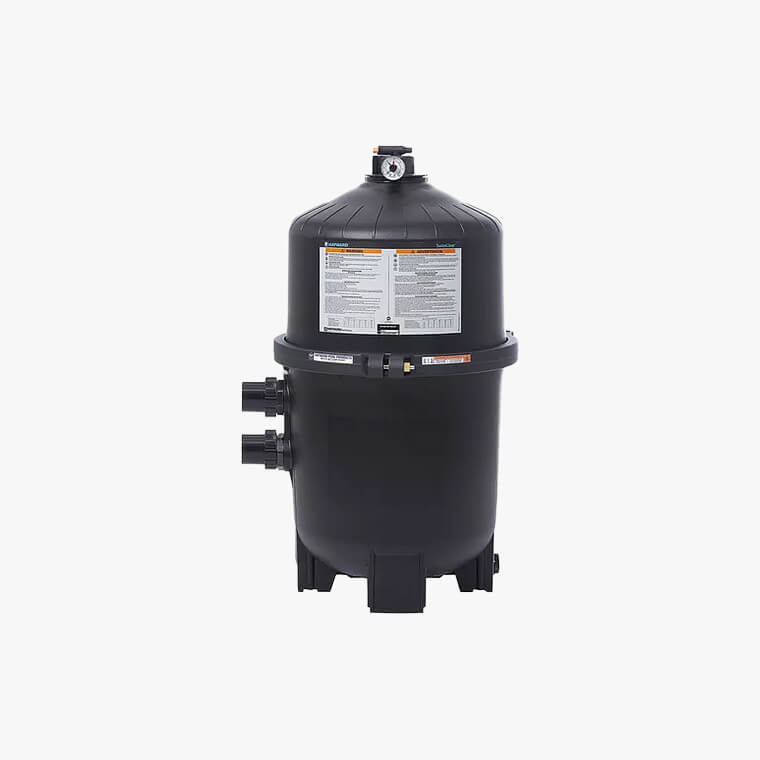

The Hayward W3C4030 SwimClear 425 Sq Ft Pool Cartridge Filters boast filter tanks of exceptional strength, providing unmatched durability and an extended lifespan.
– Top Manifold
– Manual Air Relief
– High-Strength Filter Tank
– Heavy-Duty, Tamper-Proof, One-Piece Clamp
– Full-Size 1-1/2 inch Integral Drain
– Uniform Low-Profile Tank Base Design
– Quad-Cluster Cartridge Elements
– Pressure and Cleaning-Cycle-Indicator Gauge
– CPVC Union Coupling Connection
– Self-Aligned Tank Top and Bottom
– Noryl Bulkhead Fittings
Details
The Hayward W3C4030 SwimClear 425 Sq Ft Cartridge Pool Filter is specifically designed for in-ground pools and utilizes a 4 cartridge filtration system. With an impressive capability to filter particles as tiny as 30 microns, this filter effectively removes everything visible to the human eye. Its tank is constructed from a high-strength glass reinforced co-polymer material, ensuring durability, and it features a one-piece clamp and 2″ black bulkhead unions that enhance both its sturdiness and installation convenience.
The innovative design of the Hayward SwimClear W3C4030 incorporates a one-piece clamp, allowing for effortless removal and easy access to each of the four cartridge filters. Additionally, it includes internal air bleeding to prevent the build-up of air and a 1-1/2″ drain to ensure complete draining during winterization. By keeping your pool crystal clear, the Hayward W3C4030 SwimClear minimizes maintenance needs while providing superior and long-lasting performance. It requires a vertical clearance of 58-1/2″ for proper installation.
Frequently Asked Questions:
What are the dimensions of the Filter?
– Tank Size (DxH) 24″ x 54″
– Approx. Weight 82.3 lbs
What comes with the W3C4030?
– The W3C4030 will come with four brand new cartridges, two 2″ unions for install, the tank body, one-piece clamp assembly, air relief valve, and 3 year manufacturer warranty.
How do you size a cartridge filter?
– Cartridges are sized 100 sq. ft. per 10,000 gallon of pool water is the minimum recommendation.
Does this filter need to be backwashed?
– No, the filter cartridges are cleaned manually every 4 months with the garden hose or cartridge filter cleaning solution.
What is the max flow rate for the Hayward W3C4030?
– The Hayward W3C4030 has a 150 GPM max flow rate.
What warranty does the W3C4030 carry?
– Three (3) Year Limited Warranty on Product, see Owner’s Manual for a full description of warranty claims and coverage details.
Guides and Documentation:
Hayward Energy Solutions Data Sheet
Hayward W3C4030 SwimClear Owner’s Manual
Specifications
Product Type: |
Pool Filter |
Filter Type: |
Cartridge |
Installation Type: |
Residential |
Filtration Area: |
425 sq ft |
Warranty: |
3-Year |
Manufacturer: |
Hayward |
