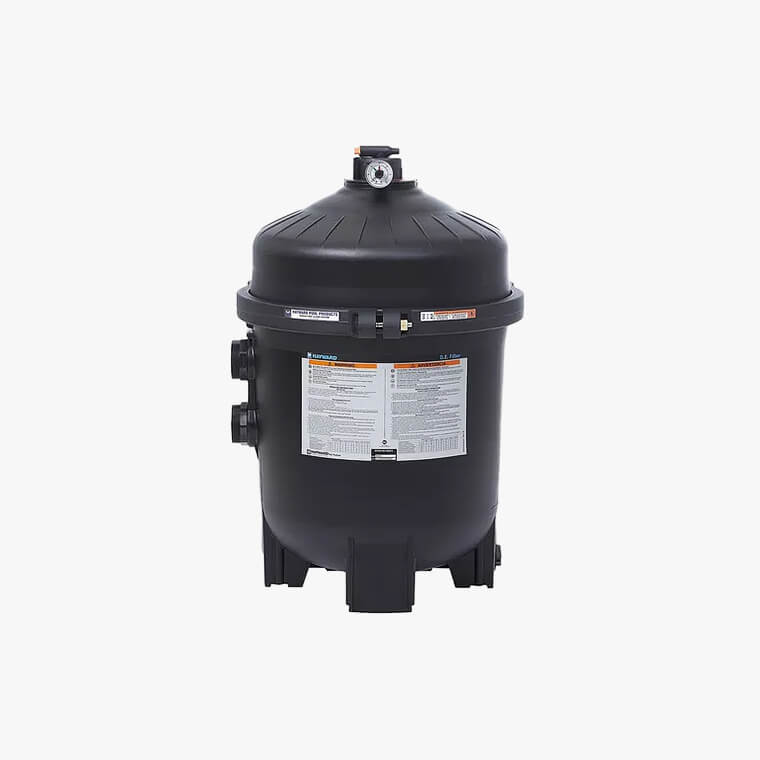

Hayward – W3DE4820 Pro-Grid 48 SQ. FT. D.E. Pool Filter

Hayward Pro-Grid Filter

Inground Filter

Overview

The Hayward W3DE4820 Pro-Grid 48 Sq Ft D.E. Filter offers exceptional water clarity, optimized flow efficiency, and a substantial cleaning capacity suitable for all kinds of pools and spas.

– Compatible with valves: SP0740DE (Selecta-Flo 2″ SKT), SP0710XR50 (Vari-Flo 1 1/2″ NPT), SP0715XR50 (Vari-Flo 2″ NPT – Optional), SP0410X5025 (Slide Valve 2″ SKT – Optional)
– Valve sold separately
– In-ground spas or in-ground pool/spa combinations
– In-ground pools
– Self-Aligned tank top and bottom make access to servicing the grid elements fast and simple
– Filter tanks made from durable reinforced thermoplastic to meet the demands of the toughest applications and environmental conditions, including in-floor cleaning systems
– High impact grid elements designed for up-flow filtration and top-down backwashing for maximum efficiency
– Heavy-duty, tamper-proof one piece flange clamp securely fastens tank top and bottom. Allows quick access to all internal components without disturbing piping or connections
– Integral lift handles and uniform low-profile base make removal of grid nest fast and simple
– Uniform low-profile base make removal of grid nest fast and simple
– Convenient valve and plumbing options allow for customized control
– Inlet diffuser elbow distributes flow of unfiltered water evenly to all filter elements and provides even distribution of D.E. to grids
– High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever
– 2″ full-flow internal piping and plumbing for less resistance to flow and maximum performance
– 120 GPM residential flow rate
– 48 sq. ft. filter allows for both commercial and large residential applications and years of non-corrosive, trouble-free performance
– Certified to NSF/ANSI/CAN 50

Details

This exceptional filter is capable of removing particulate as small as 5 microns, equivalent to the size of a human red blood cell.

The Hayward Pro-Grid W3DE4820 utilizes a set of grids coated in pool-grade diatomaceous earth. The grid set comprises 7 full grids measuring 18″ in length and 1 partial grid measuring 18″ in length. Built with glass-reinforced thermoplastic, the Pro-Grid tank ensures enhanced durability and extended product life. It incorporates a manual air relief valve that effectively eliminates air buildup in the tank, preventing it from forcing back through the system.

For efficient drainage, a 1-1/2″ drain is incorporated, and a one-piece flange clamp securely fastens the tank halves together. When removing the W3DE4820, ensure a minimum of 50.1″ vertical clearance. It is recommended to backwash the filter before removing the top lid to discharge the contaminated DE powder.

Frequently Asked Questions:

What are the dimensions of the tank?

– Tank Dimensions: (DxH) 24″ x 40-1/2″
– Weight: 75 lbs

How much DE do I add?

– The W3DE4820 Pro-Grid uses 6 lbs of DE.

What is the max GPM flow rate?

– The max GPM flow rate is 96 GPM.

What does Hayward W3DE4820 come with?

– The Hayward W3DE4820 comes with the tank, one-piece flange clamp, air relief valve, and threaded bulk heads.

Does the Hayward Pro-Grid come with a backwash valve?

– No. The W3DE4820 does not come with a backwash valve. For a multi-port valve option, we suggest item number SP0715XR50 for 2″ plumbing and SP0710XR50 for 1.5″ installations. For a side-mount push-pull valve, we suggest item number SP0410X502S.

What is the warranty for the Hayward W3DE4820?

– Three (3) Year Limited Warranty on Product, see Owner’s Manual for a full description of warranty claims and coverage details.

Guides and Documentation:

Hayward Pro-Grid Data Sheet

Pro-Grid DE Filter Manual

Hayward Pro-Grid DE Filter Warranty

Specifications
