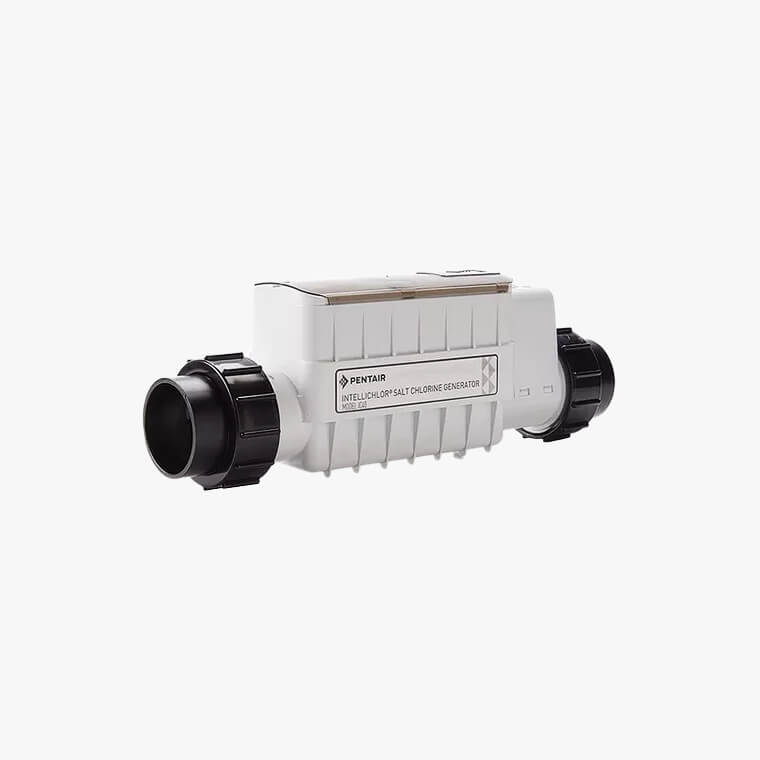

Pentair – EC-520554 – IC20 Intellichlor Replacement Salt Cell – Limited Warranty

Pentair Chlorine Generator System

Chlorine Generator

Overview

Designed exclusively for the Pentair IntelliChlor IC20 Chlorine Generator system, the Pentair Salt Cell is the perfect companion for efficient pool maintenance. This reliable salt cell comes equipped with a 15 ft cable, ensuring easy installation and connectivity. With its exceptional sanitizing capabilities, the Pentair Salt Cell can effectively treat pools of up to 20,000 gallons, providing you with clean and crystal-clear water for a refreshing swim.

– Sanitizes pools up to 40,000 gallons
– Includes 15′ cable, UL approved
– Output: 22-39 VDC @ 6amps maximum from the power center
– Chlorine output: 1.40 lbs every 24 hours (635 gm/24 hours)
– Titanium electrode cell blades coated with ruthenium oxide for durability
– 2″ union inlet and outlet connections for fast and easy cell replacement
– Easy-to-view display
– LED indicators and display on cell
– Simple output adjustment

Details

Introducing the Pentair IntelliChlor IC20 Replacement Salt Cell, meticulously engineered to sanitize pools of up to 20,000 gallons. Equipped with a generous 15-foot UL-approved cable, this salt cell ensures hassle-free installation and connectivity.

The IntelliChlor IC20 Salt Chlorinator effortlessly generates pure chlorine from the passing salt water, revolutionizing your pool maintenance routine. By utilizing a salt chlorinator, you still benefit from the sanitizing power of chlorine, but in a purer form. The result is a pool with water that feels soft, silky smooth, and a more enjoyable swimming experience.

At the core of this exceptional chlorine generation system lies the IntelliChlor cell. Unlike other well-known salt chlorination systems that rely on a separate power center with a display for control, the IntelliChlor cell features an integrated control display directly on the unit. The user-friendly interface of the control display makes it effortless to monitor chlorine output, water flow, salt levels, and cell cleanliness.

When it comes to durability and reliability, the IntelliChlor Chlorine Generator cell surpasses expectations. Each cell is crafted with titanium blades coated in ruthenium oxide, responsible for efficient chlorine production. The salt cell is equipped with large threaded unions for easy installation or replacement. Additionally, the IntelliChlor cell features waterproof electronics, ensuring protection against leaks and other issues that could affect the controls.

To prolong the lifespan of the salt cell, it is recommended to inspect it every three months. Over time, calcium build-up can occur within the plates, potentially impeding chlorine production. For swift and effortless cleaning, use the Pentair IntelliChlor Acid Washing Kit specifically designed for salt cell maintenance.

The Pentair IntelliChlor IC20 Replacement Salt Cell stands as a premier choice for chlorine production, providing you with clean and safe pool water for endless enjoyment.

Frequently Asked Questions:

How much salt is required?

– The salt level is recommended to be between 3500 – 4000 PPM.

How often do I clean the cell?

– The cell should be inspected every three months and cleaned when needed.

Do I still need to shock my pool?

– Yes, salt systems are designed to maintain a 3 – 4 PPM chlorine residual.

Guides and Documentation:

Pentair IntelliChlor Data Sheet

Pentair Eco Select Data Sheet

Pentair IntelliChlor Quick Start Sheet

Pentair IntelliChlor Brochure

Pentair IntelliChlor Owner’s Manual

Pentair IntelliChlor Warranty Card

Specifications
